High power with propane as a refrigerant and inverter technology.

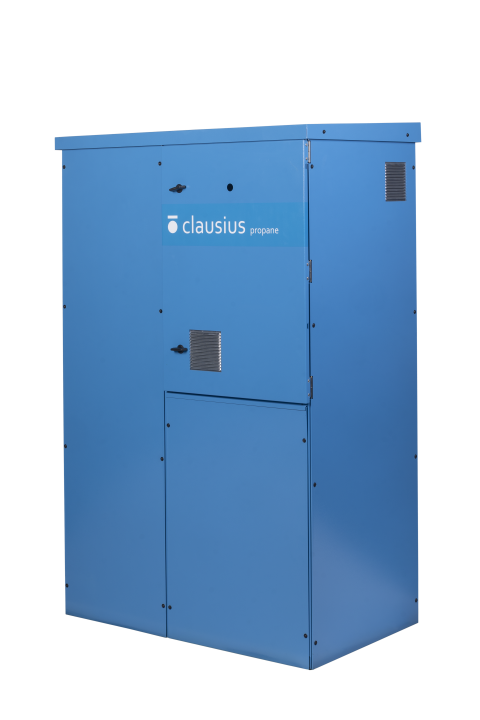

CLAUSIUS has developed a new range of HIGH POWER Ground Source Heat Pumps with propane as a refrigerant and inverter technology.
• The STRONG range comprises of 5 models with power ranges from 7 to 35, 12 to 55, 15 to 65, 15 to 75 and 20 to 95 kW.
• The STRONG DOUBLE range comprises of 3 models with power ranges from 12 to 115, 15 to 150 and from 20 to 190 kW.
Reliability with Strong Double models The STRONG Double models feature two fully independent refrigerant circuits, each equipped with its own inverter-driver system. This configuration allows each circuit to operate completely independently, ensuring continued operation even if one circuit is unavailable and therefore providing significantly increased system reliability.
Maximum efficiency by controlling the optimal operating point. At any time, the control system establishes the optimal operational conditions considering the operation of both refrigerant circuits.
Safety with propane. Propane is a flammable refrigerant (A3), so safety is a very important concern. Clausius heat pumps with propane are equipped with a propane detector and a leakage control system for indoor installation.
Customized configuration, All STRONG P and STRONG DOUBLE P models can be customized for each application being able to select between heating and DHW production, active cooling, and the integration of a desuperheater.
Built-in desuperheater for high temperature DHW (optional). Independent DHW production circuit. New control system with flow regulation in the desuperheater for DHW production up to 60/65 ºC.
Ready to use with flow meters in brine and heating circuits All STRONG P and STRONG DOUBLE P models are prepared to integrate ultrasonic flow meters, responding to a long-standing demand from our customers in recent years.
On request, supplied by Clausius, flow meters enable:
• Accurate measurement of the thermal power extracted from the brine circuit and transferred to the heating and DHW circuits.
• Monitoring of the glycol concentration.
• Detection of air bubbles within the hydraulic circuits, enhancing system safety and operational reliability.
Casing for outdoor / indoor casing. All STRONG modells have sealed case for indoor / outdoor.
Accessibility. Lift opening system that allows an easy access to all components inside the unit (only classic and strong double models).
New control strategies. More efficient, reliable and secure installations.
New Internet management and visualization system, enabling remote access, preventive maintenance, and enhanced heat pump reliability.
Connection to photovoltaic installations. Energy surplus management, control of the power produced by the heat pump, control of periods with different electricity rates and compatible with Smart Grid systems.
