Clausius classic
Domestic range
The highest COP on the market reached by an inverter ground source heat pump from 2015.
Copeland inverter technology.
- Power ranges from 1 to 10 kW / 3 to 15 kW/ 5 to 25 kW
- COPs 4.8 / 4.61 / 5.01, according to EN14511
- EERs 6.5 / 6.4 / 6.8, according to EN14511
- Single phase and three phases electrical power supply in all ranges
- R410A Refrigerant
- Electronic expansion valve
- Built in active and passive cooling
- Built in Class A variable speed circulation pumps
- Built in expansion vessels and security valves
- Built in 3-way valve for DHW production
- Built in energy counters, COP, EER and SPFs
- Built in pressure sensors in both brine and heating circuit
- Market leading noise reduction enabling flexible plant room location
- New control strategies
- Control through climate regulation
- Control for 2 climate zones
- Swimming pool control
- Special programs, floor drying, air venting program, etc
- Limitation of maximum powers through software
- Possibility of cascading up to 6 units
- Optional control with “Clausius Advance Control”
- Tested one by one in test bench
CUSTOMISED CONFIGURATION
- Optional integration of a passive cooling system
- Optional integration of a desuperheater system for high temperature DHW production and simultaneous production of heating and DHW or swimming pool, and cooling with DHW or swimming pool
- Optional use of a DHW tank with built-in desuperheater for the production of DHW at high temperature
- Optional control with “Clausius Advance Control”

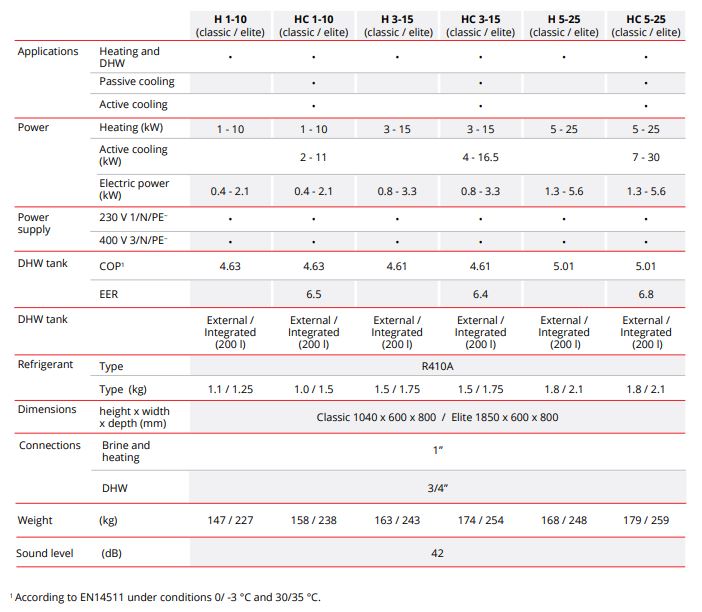

MODELS IN THREE POWER RANGES, 1-10 KW, 3-15 KW Y 5-25 KW
| H | Heating and Domestic Hot Water production |
| HC | Heating, Domestic hot water, active and passive cooling production. |
| H PC | Heating and passive cooling |
| HC PC | Heating, active cooling and built-in passive cooling |
| H DS | Heating and desuperheater |
| HC DS | Heating, active cooling and desuperheater |
| H PC DS | Heating, built-in passive cooling and desuperheater |
| HC PC DS | Heating, active cooling, built-in passive cooling and desuperheater |
CLASSIC COMPONENTS
In the manufacture of CLAUSIUS ground source heat pumps, we only use components from the European premium brands.
1
2
3
4
5
6
7
8
9
10
11
1
COPELAND inverter technology
2
Control with CAREL microcontroller (optional management with “Clausius Advance Control”)
3
HONEYWELL 3-way valves
4
WILO high efficiency variable speed circulation pumps (Class A)
5
ALFA LAVAL asymmetric plate heat exchangers
6
Expansion vessels & safety and drain valves integrated
7
Pressure sensors in both brine and heating circuits
8
COPELAND Scroll Compressor
9
CAREL electronic expansion valve
10
Internet connection
11
Connection to photovoltaic installations
Documents
Energy labelling, product sheets and technical documentation according to Delegated Regulation (EU) No. 811/2013.
