Clausius Strong
High power range
High power with the new Copeland inverter technology
- Power ranges 7 to 50 kW and 12 to 75 kW
- COP 4,8 according to EN14511
- EER 6,5 according to EN14511
- Three phase electrical power supply
- Active cooling integrated
- Optional integration of passive cooling
- Optional integration of desuperheater for high temperature DHW production.
- R410A Refrigerant
- Electronic expansion valve
- Energy meters, COP, EER and SPFs integrated
- Built in pressure sensors in both brine circuit and heating circuit
- Market leading noise reduction
- Control with double microcontroller
- New control strategies
- Swimming pool control
- Control of 5 mixing groups and 6 climate zones
- External passive cooling control
- Control of DHW production in two independent tanks
- Possibility to cascade up to 14 units.
- Optional online monitoring and inspection through internet connection
- Tested one by one in test bench.
CUSTOMISED CONFIGURATION
- Built-in passive cooling, optional
- Built-in desuperheater for high temperature DHW production, optional

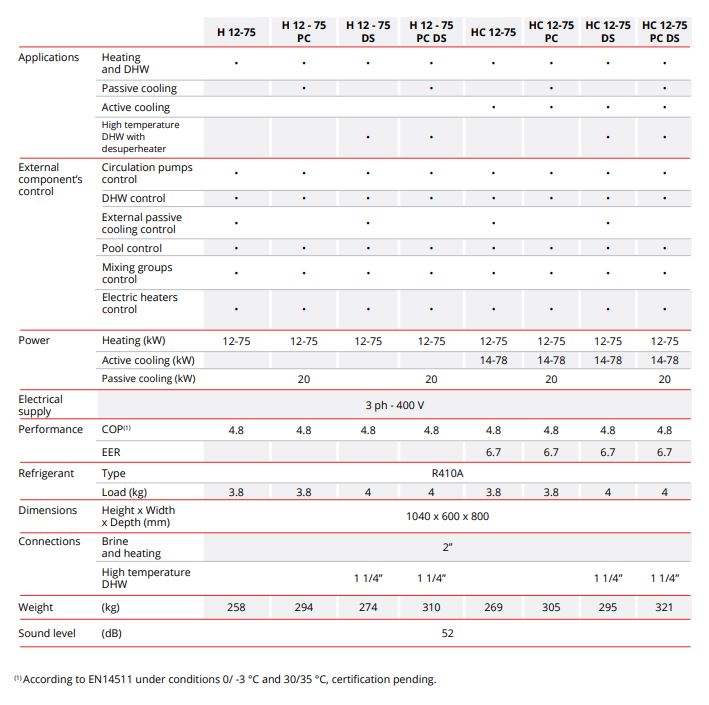

MODELS IN TWO POWER RANGES, 7-50 KW AND 12-75 KW
| H | Heating |
| HC | Heating & active cooling |
| H PC | Heating & passive cooling |
| HC PC | Heating, active & passive cooling |
| H DS | Heating & desuperheater |
| HC DS | Heating, active cooling & desuperheater |
| H PC DS | Heating, passive cooling & desuperheater |
| HC PC DS | Heating, active cooling, passive cooling & desuperheater |

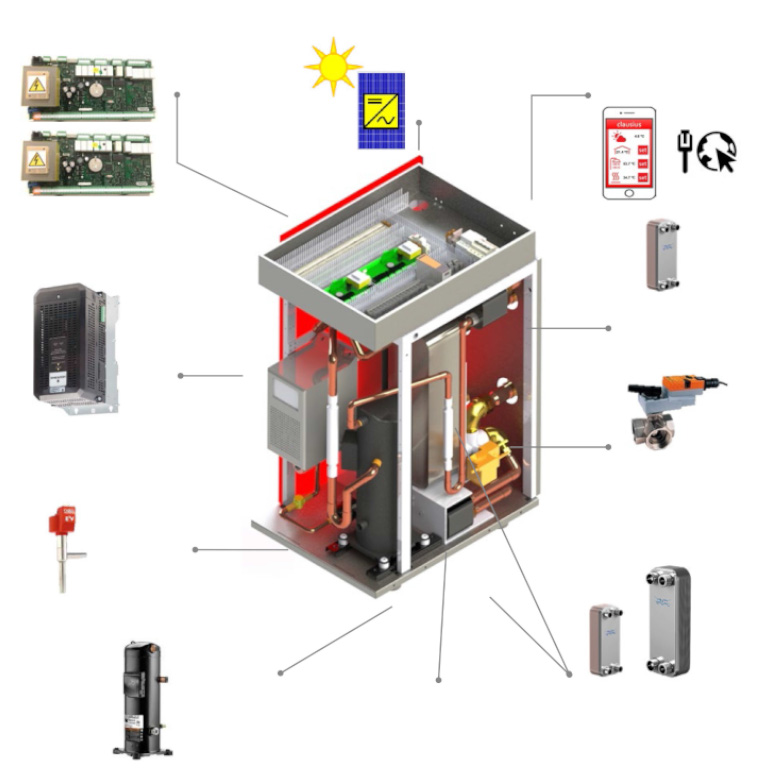

STRONG COMPONENTS
Last generation in High power Copeland inverter system. We work with maximum performance components, among which we highlight:
1
2
3
4
5
6
7
8
9
10
1
Control with double CAREL microcontroller
2
COPELAND inverter technology
3
CAREL electronic expanssion valve
4
COPELAND Scroll Compressor
5
Passive cooling (optional)
6
New generation of ALFA LAVAL asymmetrical heat exchangers
7
BELIMO 3-way valve
8
Desuperheater (optional)
9
Internet connection
10
Connection with photovoltaic installations
Documents
Energy labelling, product sheets and technical documentation according to Delegated Regulation (EU) No. 811/2013.
