Clausius Strong Double

High power range

A+++

Two totally independent refrigerant circuits, double reliability.
Inverter system in each circuit, maximum efficiency at any time.

  • Power ranges 7 to 100 kW and 12 to 150 kW
  • COP 4,7, according to EN14511
  • EER 6,5, according to EN14511
  • Three phase electrical power supply
  • Active cooling integrated
  • Optional integration of desuperheater for high temperature DHW production
  • R410A Refrigerant
  • Electronic expansion valve
  • Energy meters, COP, EER and SPFs integrated
  • Built in pressure sensors in both brine circuit and heating circuit
  • Market leading noise reduction
  • New control strategies
  • Control with double microcontroller
  • Control of 5 mixing groups and 6 climate zones
  • Swimming pool control
  • External passive cooling control
  • Control of DHW production in two independent tanks
  • Possibility to cascade up to 14 units.
  • Optional online monitoring and inspection through internet connection
  • Tested one by one in test bench.

CUSTOMISED CONFIGURATION

  • Built-in desuperheater for high temperature DHW production, optional

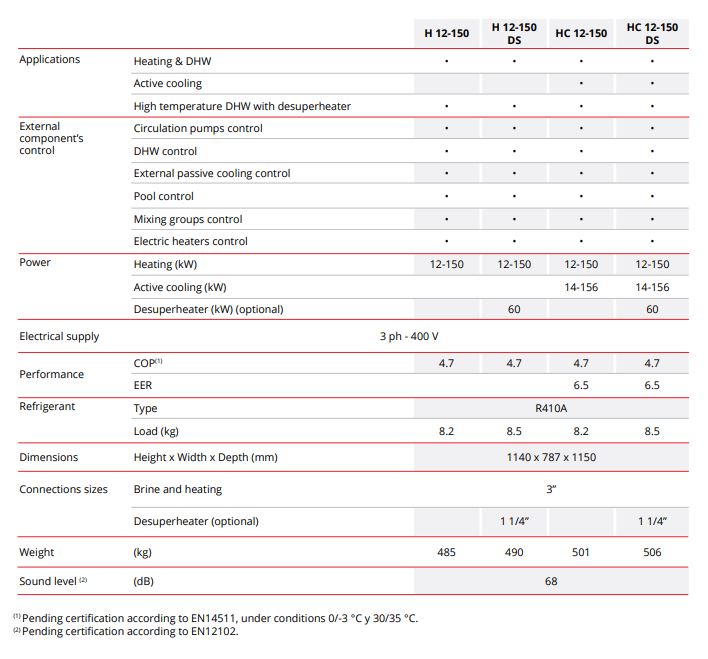

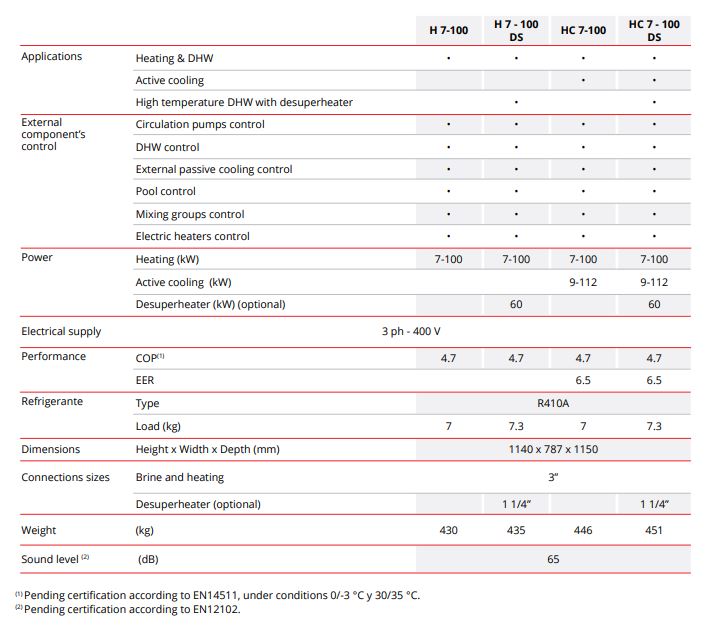

MODELS IN TWO POWER RANGES, 7-100 KW AND 12-150 KW

HHeating
HCHeating & active cooling
H DSHeating & desuperheater
HC DSHeating, active cooling & desuperheater

STRONG DOUBLE COMPONENTS

Tandem with two Copeland scroll compressors with inverter system.

Componentes
1
2
3
4
5
6
7
8
1

Control with double CAREL microcontroller

2

Tandem with COPELAND Scroll Compressors

3

COPELAND inverter technology

4

Desuperheater (optional)

5

CAREL electronic expanssion valve

6

New generation of ALFA LAVAL asymmetrical heat exchangers

7

Internet connection

8

Connection with photovoltaic installations

DOCUMENTS

Energy labelling, product sheets and technical documentation according to Delegated Regulation (EU) No. 811/2013.
